TPR thermoplastic braided hose pipe plant

Product Description

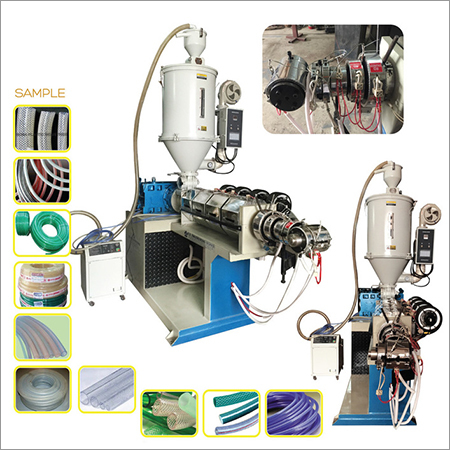

TPR thermoplastic braided pipe making machine and plant is only and mostly make by RD engineering works in delhi and supply all over india and world,this plant is also known as dhaga pipe making plant,TPR thermoplastic braided hose plant,welding hose making plant,firehose making plant,pvc garden braided hose making plant,industrial hose making plant,nylon braided pipe making machine,pvc Sanitory connection pipe making machine, BREIF SPECIFICATION R.D. ENGINEERING WORKS RDEW75mmx75mm Model A+, PVC braided pipe-making plant consisting of single screw extruder having one specially designed screw made by stainless steel duly chrome & polish for the smooth flow of material and one barrel Of specially selected high tensile ENB-41alloy duly nitrated for longer life, ground and honed and fitted with suitable drive motor, hopper, die & nozzle, and same extruder with all specification for outer tube after thread braided on inner tube , stainless steel head,water cooling Bath, take- off unit, heater, one temperature controller cabinet.special design braider having 18+18+6 bobin providing with heavy duty bearing block drive by 2set electric motor ,on plate revolving clockwise and second plate revolving anti-clockwise direction through panel ,Complete with detailed in the specification: - SPECIFICATION OF PVC nylon braided PIPE MAKING PLANT Minimum-maximum out-put : 80 to 100kg/hr Size range : 6mm to 32mm Flow line of plant Mixer machine -:- inner extruder -tank -rulla takeup-braided machine- outer tube extruder-tank-final houloff -coiler
